NLSExplorer Result Page
| Position | Prediction type NLS indicates Nuclear Localization Signals, NIA means potential Nuclear Important Area in protein sequence. | Length | Recommendation score | Entropy score | Rcommended NLS segment |
| 130-136 | NLS | 7 | 0.99491 | 2.23593 | TGTKRKL |
| 149-161 | NLS | 13 | 0.99448 | 2.80739 | QFNKIKLRPKYKK |
Segment Similarity Information
Each NLS we show similarity in top-5 of predicted NLS from NLS candidate library
| NLS | Similar NLS | Uni ID | Species | Probability | Position |
|---|---|---|---|---|---|
| TGTKRKL | IKKRKA | P38937 | Schizosaccharomyces pombe | 0.9934622049331665 | 8-13 |
| SVKRKS | Q9XIF2 | Arabidopsis thaliana | 0.9944832921028137 | 2-7 | |
| MTKKRKLE | Q9LES2 | Arabidopsis thaliana | 0.9962660670280457 | 0-7 | |
| VKKRKL | Q02206 | Saccharomyces cerevisiae | 0.9959314465522766 | 2-7 | |
| TSVKRKASE | P53254_1 | Saccharomyces cerevisiae | 0.9940599799156189 | 2-10 | |
| QFNKIKLRPKYKK | PPVRAEKKRKT | O74560 | Schizosaccharomyces pombe | 0.9950234889984131 | 1-11 |
| IMSDSKKIKVD | P19659_2 | Saccharomyces cerevisiae | 0.9943709969520569 | 0-10 | |
| GCIRKRWLRKPRPVSL | Q12789_3 | Homo sapiens | 0.9949774146080017 | 0-15 | |
| KRKRVE | O94328 | Schizosaccharomyces pombe | 0.9950109720230103 | 3-8 | |
| LRKKIKSF | P06777_2 | Saccharomyces cerevisiae | 0.9935251474380493 | 2-9 |
| Position | Prediction type NLS indicates Nuclear Localization Signals, NIA means potential Nuclear Important Area in protein sequence. | Length | Recommendation score | Entropy score | Rcommended NLS segment |
| 454-459 | NIA | 6 | 0.36166 | 1.25163 | LKKVKK |
| 518-528 | NIA | 11 | 0.01755 | 3.0958 | VIQKYNRFKHH |
| 563-579 | NIA | 17 | 0.00734 | 3.38158 | DAITFAEQKLNCKYKKF |
| 419-424 | NIA | 6 | 0.00723 | 2.25163 | NKKSTL |
| 548-553 | NIA | 6 | 0.00588 | 1.25163 | LKLLAL |
| 534-539 | NIA | 6 | 0.00582 | 2.25163 | KVNRRE |
| 368-373 | NIA | 6 | 0.00483 | 2.25163 | LSRKES |
| 202-207 | NIA | 6 | 0.0042 | 2.25163 | MRFDDN |
| 260-265 | NIA | 6 | 0.00383 | 1.79248 | NRVFVV |
| 268-273 | NIA | 6 | 0.00381 | 2.58496 | DKIRFM |
| 490-495 | NIA | 6 | 0.00372 | 2.25163 | NEERLT |
| 311-316 | NIA | 6 | 0.00354 | 2.25163 | HHTFKA |
| 300-305 | NIA | 6 | 0.00325 | 1.9183 | QNCKKC |
| 340-345 | NIA | 6 | 0.00318 | 2.58496 | LGERKC |
| 32-37 | NIA | 6 | 0.0028 | 2.58496 | QPNDYL |
| 18-23 | NIA | 6 | 0.00237 | 2.58496 | RASFDN |
| 54-59 | NIA | 6 | 0.0021 | 2.25163 | DSETAA |
| 65-70 | NIA | 6 | 0.00207 | 2.25163 | ASVNSL |
Attention distribution along the sequence

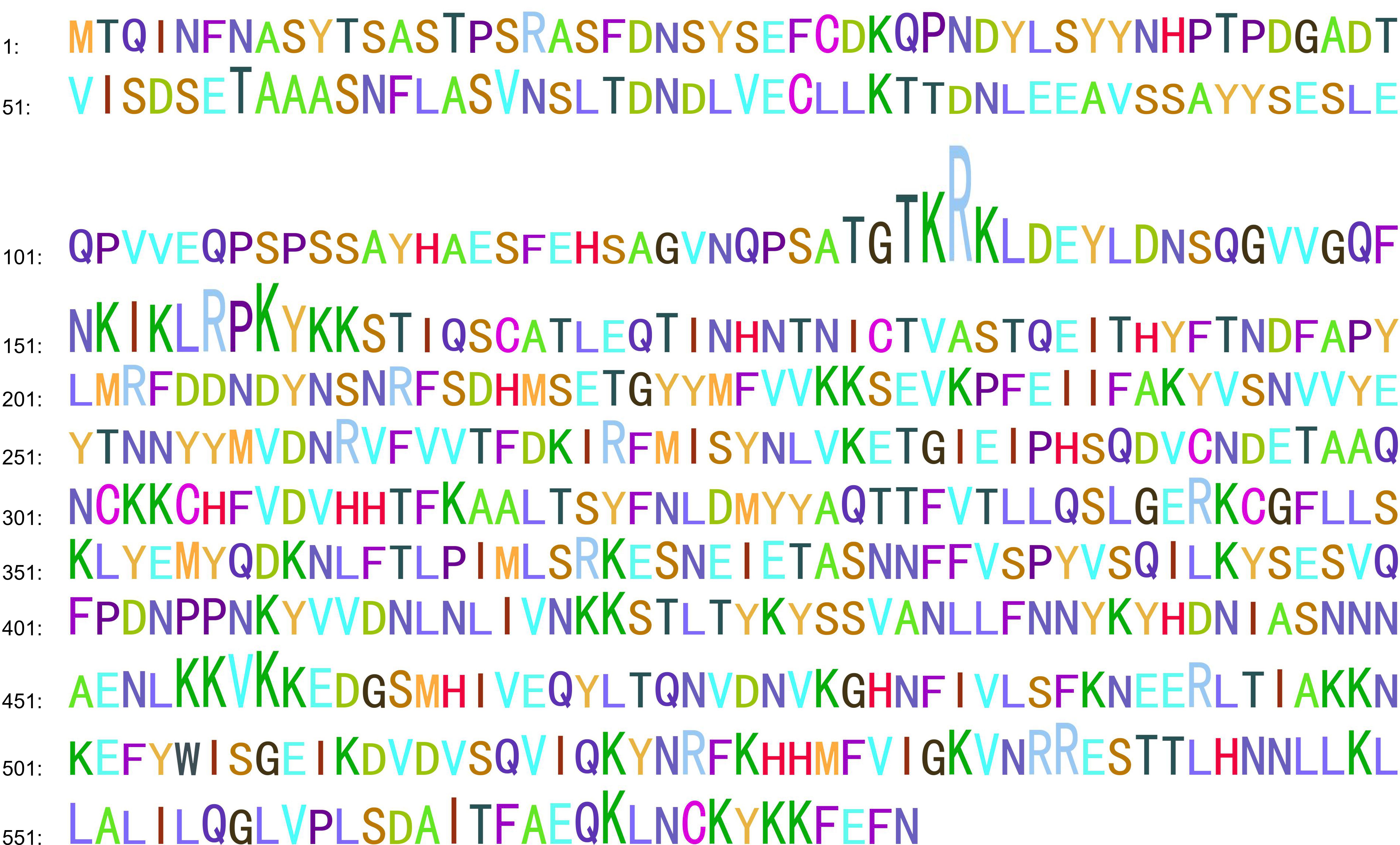

Sequence visualization according to the attention map
The structure statistical of recommended segment
The recommended segment visualization on 3d structure
The green, blue, and yellow regions refer to the top three recommended NLS,
while the red region represents other potential NLS regions
